Workshop name tags 4

Old car insignias have always intrigued me. For Rafael’s name plaque I decided to create one. The type style I chose is called air conditioner.
The vectors were basic. The open contour was modified by simply bending the two sides.
I used the bevel tool to create a relief. It is fairly shallow.
The letter outline was created as a zero height flat relief. This was then merged LOWEST with the first relief.
Then I created the background relief, applying a subtle texture to the inner, raised portion. The lettering was created as a separate relief, positioned vertically and then merged highest to complete the file. It was now ready for tool pathing and routing.
-dan

Published with permission from precisionboard.blogspot.com. Source.

Workshop name tags 3

Cory’s name plaque  was to be a diamond shape. The vertical and horizontal lines play off this shape and a comic font offsets the squareness of the diamond. It uses a bitmap from my TEXTURE MAGIC collection called checkerboard squiggles.
The border of the panel is a basic flat relief. Then I modified this relief by using the bevel tool, but I set the perimeters to limit to the height.
Then I imported the bitmap, enlarged and entered it on the panel.
The letter outline was created as a separate relief, adjusted vertically and then merged highest to the plaque.
The lettering was the last element to be added. It is a bevel with a base height of 0.15″. As quick as that the file was ready for tool pathing.
-dan

Published with permission from precisionboard.blogspot.com. Source.

Workshop name tags 2

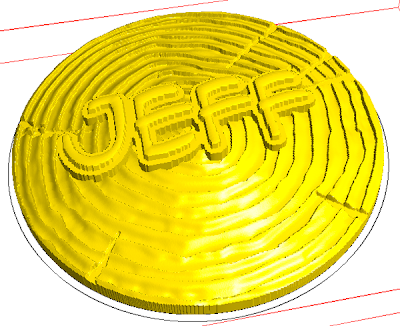

The second name tag was a relatively simple one. Jeff’s name tag would feature his name on a log round.
I imported the long round with splits bitmap from my TEXTURE MAGIC collection. The relief was a simple circle with a dome shape. The bitmap was then applied.
The lettering outline is then made into a relief, and then modified into a dome shape with a similar sized circle vector using the same settings as he original background vector.
Stay tuned for some more name plaques coming up.
-dan

Published with permission from precisionboard.blogspot.com. Source.
