City crest on router

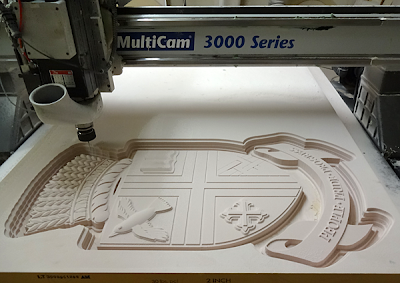

Today I finally had the chance to put a piece of 2″ Precision Board onto the MultiCam and route the city crest file I built last week. The file was routed in two passes – one with a 3/8 ball nose bit and a second pass with a tapered flute 1/8″ ball nose bit. The piece was about 42″ tall in total and 24″ wide.

The file ran while I was out doing other projects. It looked pretty good and will need just a little bit of handwork to finish things off.

-dan

Published with permission from precisionboard.blogspot.com. Source.

Last steps to create the crest relief

The last two elements were the most complicated or at least appeared so. But as always it is simply a matter of breaking things down into little steps and then putting everything tougher. The bird was first. The wings were be done in two layers, one slightly thicker than the other and then merged together. the tail is done as a flat relief. These were then merged highest to the border relief that circled the bird.

The bird body is done as a domed relief. The beak was done as a bevel relief. Both were merged highest to the outline relief.

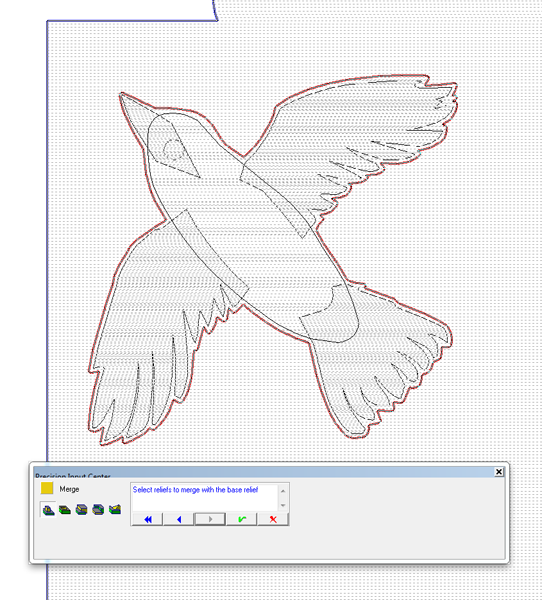

The bird was then merged to the shield background by adding it to the base relief.

The last step was to add the eye by modifying the shield relief.

The book was then next step. It took some head scratching as there were a few things that made it tricky… the first being the 45 degree edges on three sides. But after some thinking I figured it out. I created a book shaped vector – shaped like a flying bird. I also made two vertical lines which would be the rails I would use to create the mesh using the sweep two rails function. But first i created a relief using the bevel tool.

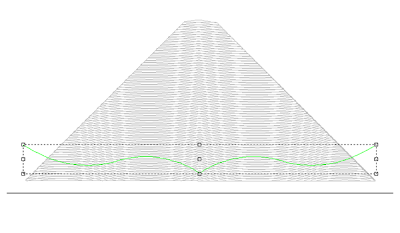

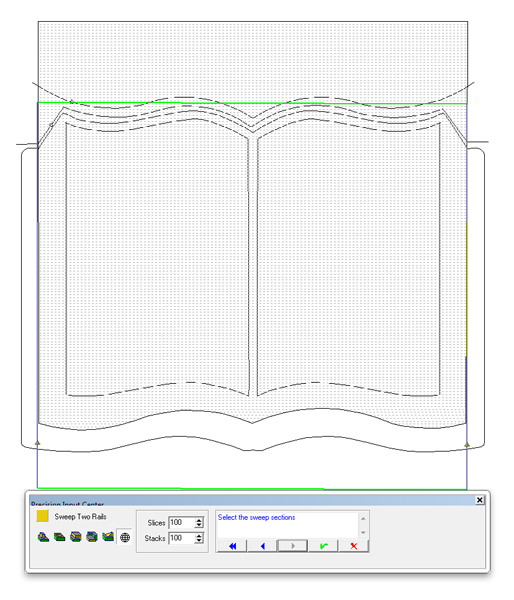

The book shape would be created as a mesh using the sweep two rails function.

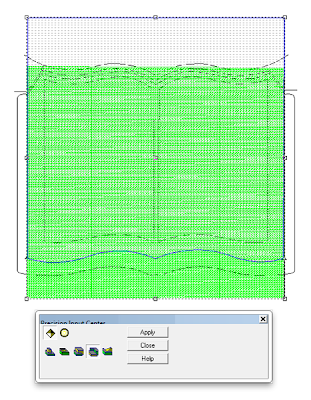

Both the relief and mesh were selected which allowed me to go to the next step using the merge lowest function.

 I then created a flat relief that was both the book cover and would also be used to define the top edge of the relief when it was merged highest.

The completed book relief was then merged to the crest relief by ADDING it to the base relief.

All those little steps combined have brought us a completed crest relief – easy as that!  🙂

I’ll send a screen capture to m client for proofing before I send it off to the MultiCam to be routed fron 2″ thick Precision Board. I’ll post a picture when I’m done.
-dan

Published with permission from precisionboard.blogspot.com. Source.

More steps on the crest

The wheat crown on the top of the crest was the next part of the relief puzzle. It like the rest of the relief would use a variety of tool in the EnRoute bag. The vector was fine as is with the exception of the two drop shaped pieces at each end. I cut and pasted two drops into place and then drew two shapes that cut them in half. This would allow me to trim them to shape in a bit.

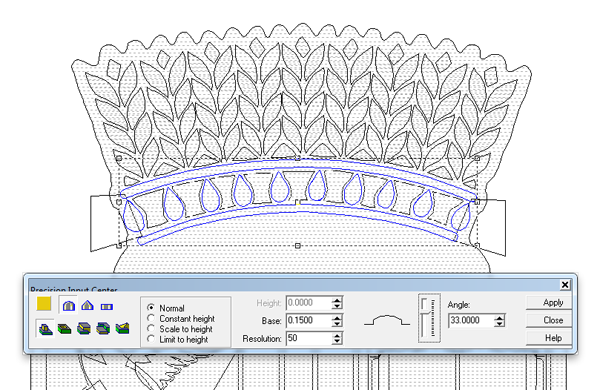

I forgot to grab a screen shot of the next step but I selected the top wheat shapes. I used the prism tool to make the reliefs. The drops and the bars of the crown were next. These elements were domed with a base of 0.15 inches.

The spaces between the drops was to be flat. I used the create relief tool for this task.

To trim the end drop shaped reliefs I created zero height reliefs These would be merged lowest to the drop shaped reliefs. The operation has to be done one piece at a time.

With all the reliefs created it was time to add them to the crest. I used the merge reliefs tool for this task but selected the add to command.

Then it was time to modify the base relief by adding to it using a bunch of the vectors. These were simple shapes – nothing fancy or difficult here.

This leaves only the bird and book to go. I’ll be whipping those shapes up in the next post.

Stay tuned…
-dan

Published with permission from precisionboard.blogspot.com. Source.

Simple steps to complicated crest

 A current project in the shop is a three dimensional crest for a city. The file is somewhat complicated, mostly because it involves so many steps and procedures to build the file using a wide variety of techniques. The most important thing is that they be done in the right order.I received the file from another sign maker who has taken one of our workshops. It was an Illustrator file designed for printing. My job was to adapt it for a dimensional plaque. The piece will be relatively small – measuring approximately 24 inch wide by 36 inches tall and will be routed from a two inch thick 30 lb Precision Board.

The first task was to simplify the AI file, taking out the double and triple borders as well as the highlights and shadows of the printed version. Some parts like the bird and book had extra vectors added to allow me to create the 3D file.

I also added a late pill shaped vector around the image which I would use to round the shield face.

The first step was to create the base vectors as flat shapes.

I forgot to grab a screen shot of the next step but I selected the base reliefs and also the large pill shaped vector which was used to modify the base relief using the dome tool.

Once we had the base relief I created more flat reliefs for the scroll that was under the shield. This was done in five pieces of various heights. These were then merged highest with the background.

The lettering on the scroll was created by selecting the base relief and he lettering vectors and then adding to the relief.

The shield base relief was also modified by adding to it using the next vector.

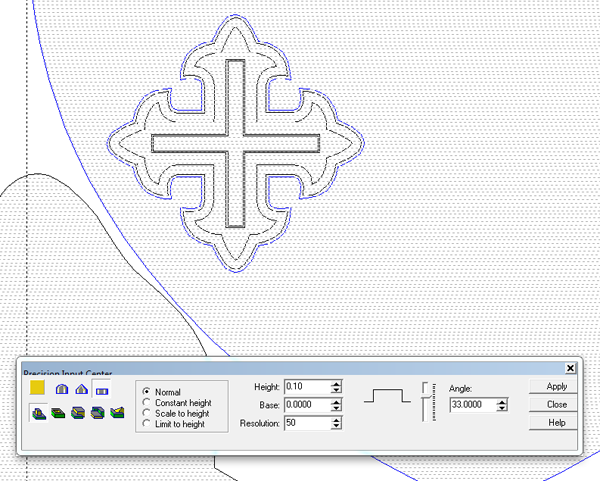

Then it was time to begin work on the individual shapes of the shield. I first created a flat relief.  Then using the wiener shape vector around it I modified the original reliefs using the dome tool.

The relief was then merged by ADDING it to the base relief. This shaped it to the domed shield.

The shield is now well underway and looking great.

Stay tuned for the next installment as I create and add more elements to the crest…
-dan
