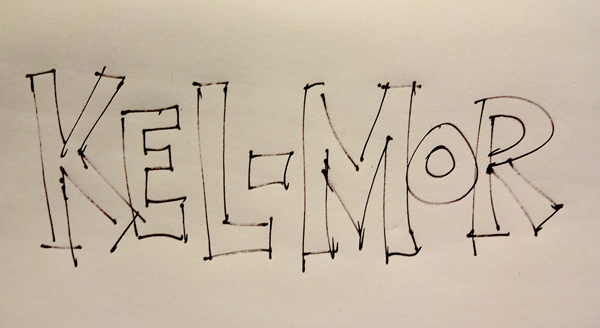

Because the little dump truck is to be paraded out onto the ice between periods at local hockey games it is important that the customer’s name be extra large on the side. Lettering on the doors simply wouldn’t have worked. I decided some dimensional lettering was a better idea. The MultiCam would do the bulk of the work for this task. I wanted to use a cartoon font and I had built such a font in just the style I wanted to use. It is available at  LETTERHEAD FONTS .  My pet peeve is to see someone use these fonts ‘right out of the box’. They beg to be played with, the occasional letter resized or tweaked to make them more playful and work together. I of course always take it one step further. Because the letter style is so familiar to me I like to redraw it each time from scratch – on paper and then quickly digitize it to become a vector. Below is the quick scribble straight from my sketch book.
This was hand traced to become a vector. I tweaked things just a little to satisfy me.

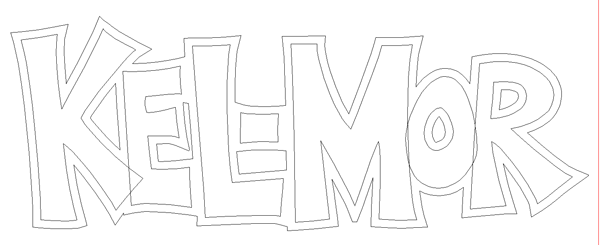

 Then in EnRoute I added an outline.

I added one more outline and this would become my backing board which would be cut from medium density overlay plywood to add structural strength to the cut out Precision Board letters. I would also use this outline to create my routing zero height ‘bowl’ that would effectively cut out the letters as well.

The letter outline was added to the zero height relief.

Next I used the bevel tool to add the beveled letters.

As quick as that the file was ready for tool pathing.

I ran the file two times – one for each side of the truck.

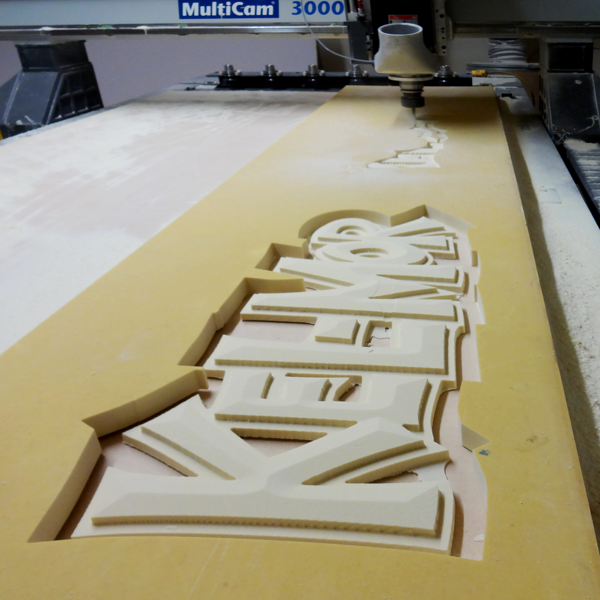

The backer boards for the sign were cut from double sided half inch medium density overlay using an offset cut.
Here’s the sign mocked up before painting.

Matt holds the sign roughly where it will go on the truck. Painted in bright colors is should be plenty readable from anywhere in the arena.

Tonight we’ll finish the welding on the box and hopefully the bulk of the sculpting as well meaning there is only paint to be applied after that. We are almost ready for a test drive!
-dan

Published with permission from precisionboard.blogspot.com. Source.

Just a few details on the router

On some projects we use our router for only small bits of the whole. A current project, a small dump truck built over a golf cart chassis is a perfect example. The routed portion of the project will be limited to an emblem on the grille and a dimensional sign on each side. It’s not much compared to the whole thing but it adds just the same.

As always it starts with a drawing.

The golf cart was in pretty good shape mechanically. We stripped the body off first. If possible I like to keep the mechanicals such as the gas/brake pedals in the stock positions. The steering wheel was relocated to the center and shortened. The floorboards were cut down to allow for a narrow body.

A new frame was built around the old one. The new body is built around this steel frame, leaving the original aluminum one intact. In this shot I’m testing the new seating position.

I then welded a pencil rod framework to shape the new body. Expanded lath was then tied to this framework.

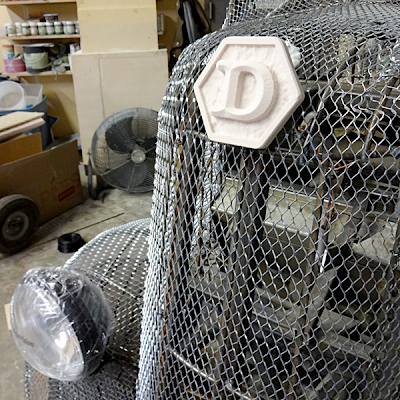

The grill emblem was one of he few pieces of this project that were made on the router.

A thin layer of sculpting epoxy was pressed over the mesh. It will get another coat which will be carefully sculpted to form all the details and body panels. The box of the truck was built over a sturdy welded steel frame.
The sides of the dump box were built in the same fashion. The photo shows the detailed sculpt of the hood, cowl and start if the detailed grill. This marks the progress to date but in the next few days this project will come together.

I’ll post a few more pictures as we make more progress.
-dan
