More lawn signs

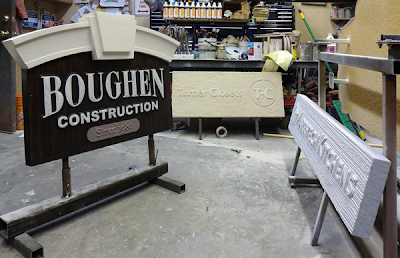

Three more contractor signs are in progress for in front of the new house. The Marr-Tech sign is now glued up over the welded steel frame as is the Turner Closets sign. Boughen Contracting sign is the final stages of paint. It will be ready to go out the door tomorrow.

Amazingly, we have now done more than a dozen of these small signs to advertise our various contractors involvement in our house project. They will remain on our front lawn in front of the house until the end of summer – when we start the landscaping.
-dan

Published with permission from precisionboard.blogspot.com. Source.

Simple dimensional sign

We continue to build dimensional signs for the contractors that are working on our house. Today it was time to start on the cabinet maker’s sign. As many times as we build this kind of relatively simple sign there are always a few twists to keep things interesting.

I did the lettering in Illustrator and then built the logo and sign around them. Since the woodgrain bitmap would be applied as four separate rectangular areasI built the panel vectors as well. We would use these as masks for the bitmap.

I first built a flat relief 0.5″ thick.

┬áThen I imported the sandblasted woodgrain bitmap from TEXTURE MAGIC DVD, enlarged and positioned it and applied it with a value of 0.15″

┬áNext up was the border reliefs around the letters and logo. These were built as flat relief 0.7″ high, just enough to clear the woodgrain.

The letter borders were then merged highest with the background.

Lastly te ;etters and logos were added by modifying the base relief using the vectors as a mask.

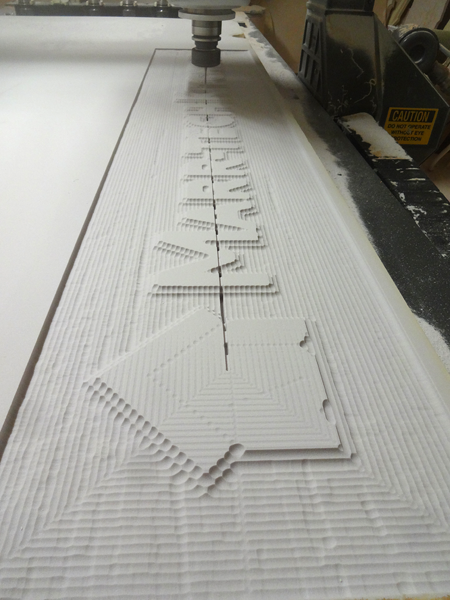

The file was tool pathed with a 3/8 ball nose bit as a rough pass at 50% overlap. A 1/8″ ball nose bit was used for the final tool path set with an 80% overlap. The file was then sent to the MultiCam to be routed from a piece of 1″ thick 30 lb Precision Board. Here’s a picture of the sign face on the router just as the 1/8″ ball nose bit pass was started.
I’ll be posting more pictures of this sign as it goes together.
-dan
