With the Sign Magic Workshop now just over a month away it is time to get busy with the preparations. Each guest will receive a routed name plaque to take home with them. Through the years of the workshops I’ve designed and routed more than 200 of these name plaques – all different. they are a great way to learn the program!
For Kyle I decided a checkered flag would be cool. I wanted it to wave both vertically and horizontally. I would do it using some cool tools in EnRoute. I first created a rectangular flat relief. then I imported a checkered bitmap from my TEXTURE MAGIC COLLECTION. I carefully sized the flat relief to fit the checkered squares.

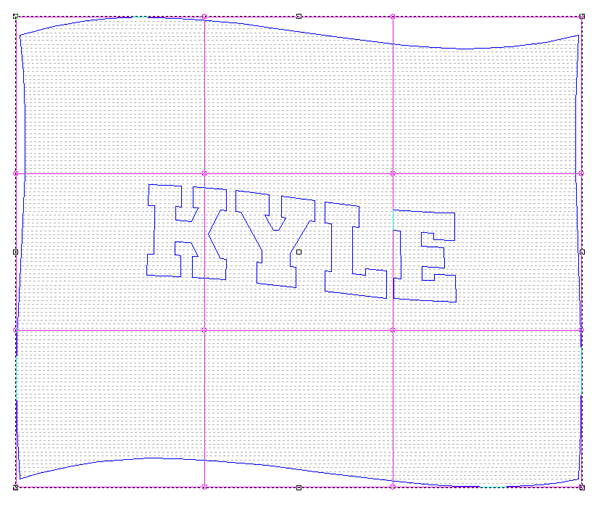

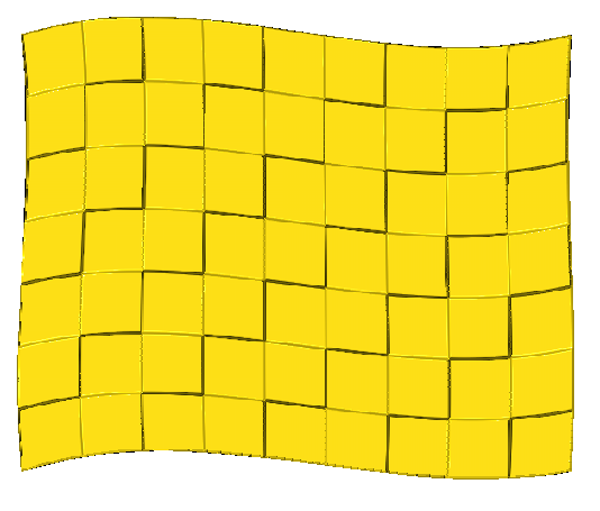

I then selected both the lettering vectors and the relief and using the distort tool formed ten into a wave pattern.

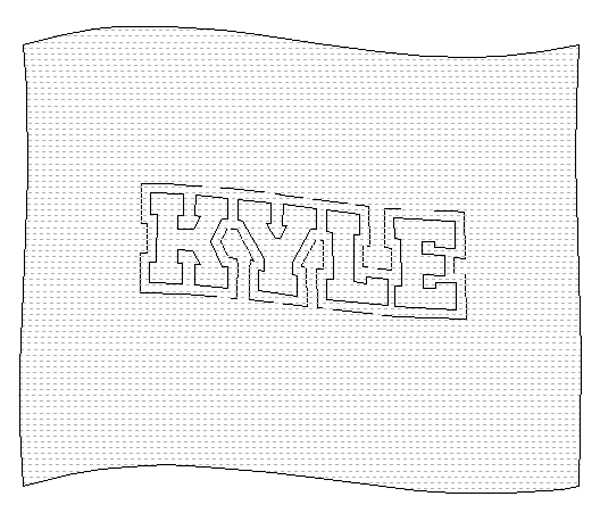

I added an outline using the offset drawing tool.

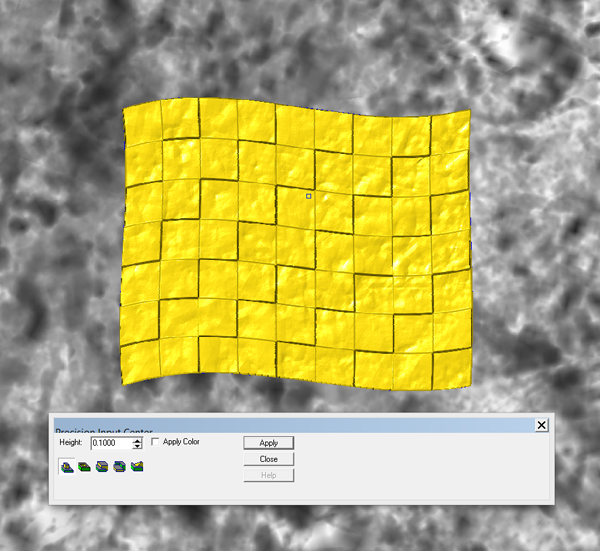

Then I added a subtle texture using a bitmap called SPLOTCHES. This would make the adding of glazes much easier later when we were doing the paint.

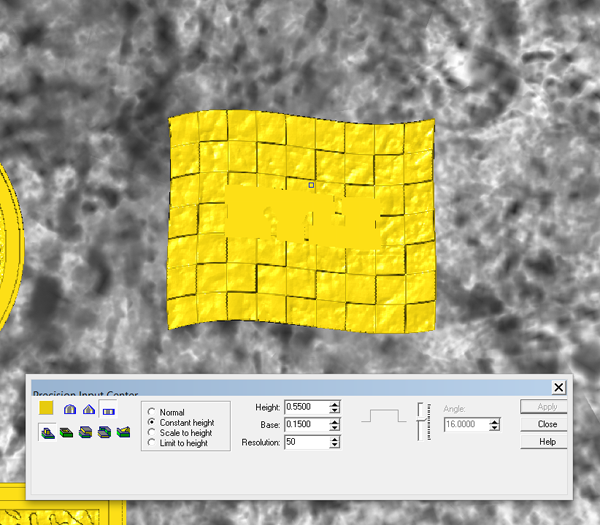

The lettering border was next, created as a separate flat relief.

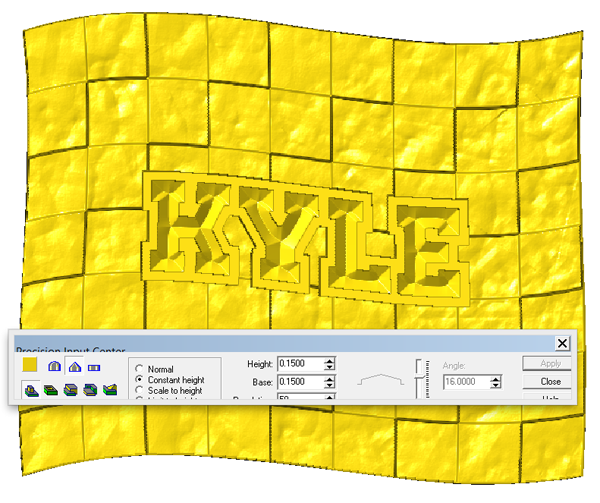

Then I added the beveled lettering to the border. Notice the beveled letters have a base of 0.15″ as this makes them easy to paint. I merged highest all the pieces to make one relief.

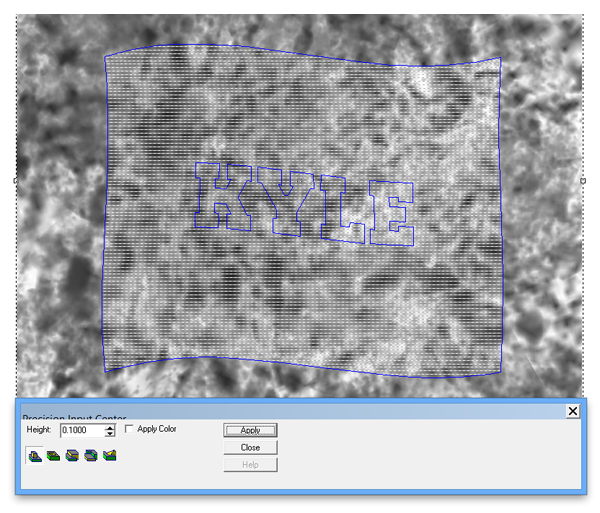

I then selected the base relief and the lettering vectors to add a subtle texture using the splotches bitmap once more but only to the letters this time. The border around the letters remained smooth.

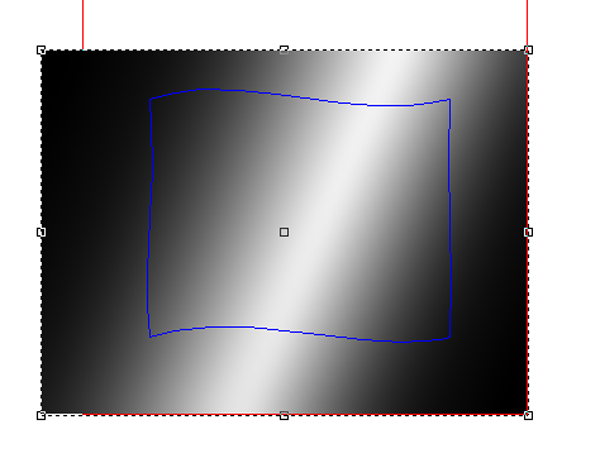

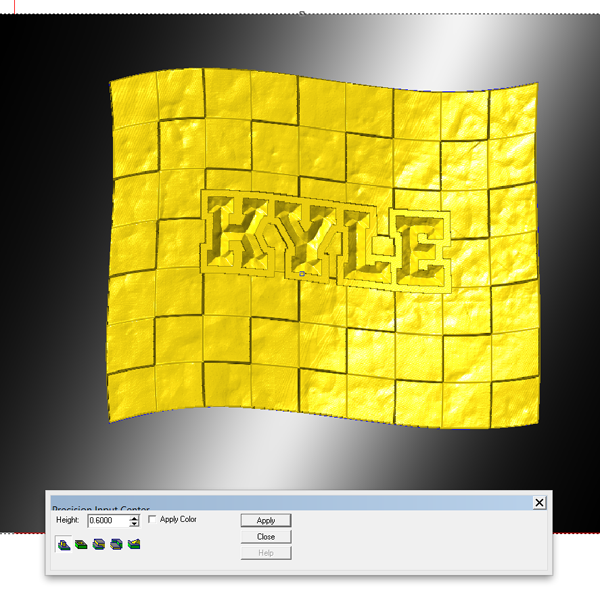

To create the vertical wave in the flag I used another bitmap. The white would raise while the black did nothing, greys something in-between. I used a value of 0.6″ which makes things pretty dramatic.
