Another name plaque

With the arrival of a guest in our shop tomorrow it was time to create a name plaque. Julio wants to learn how we do our finishing and there’s no better way than doing it hands on! In order to demonstrate our techniques we needed a second name plaque as well, so Grant (my soon to be son-in-law) is getting a name plaque as well. Both plaques are to be identical save for the name.

I started by building the vectors for the plaque components

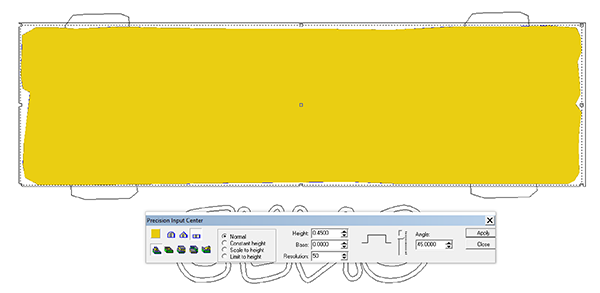

I then selected the plaque outline and created a flat relief. 0.45″ tall.

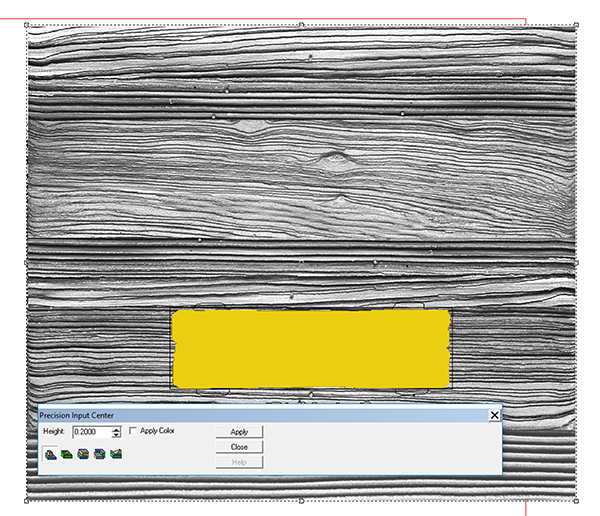

I then imported a sandblasted woodgrain bitmap which I sized to fit on the board. I applied it with a value of 0.2″ tall.

The metal bands were next, created as flat reliefs.

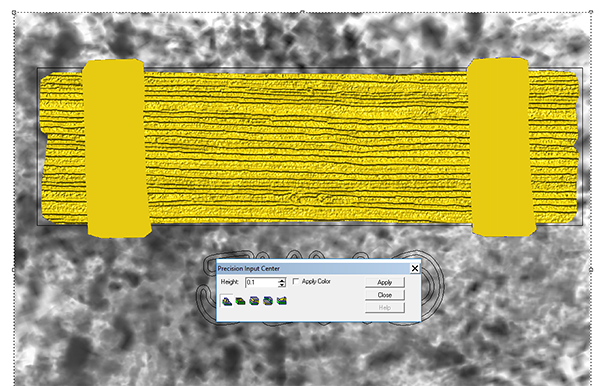

I imported a second bitmap to add some texture to this band. I input a value of 0.1″ for this procedure.

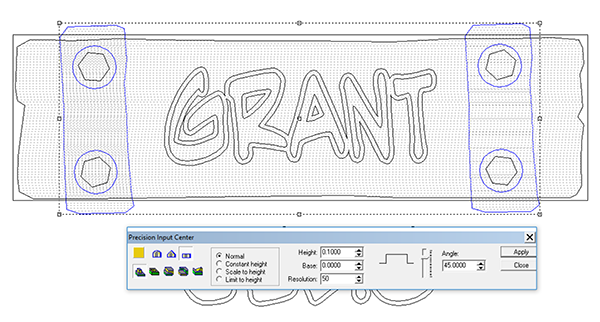

Then I modified these two reliefs by using the add to tool. This created the flat washers.

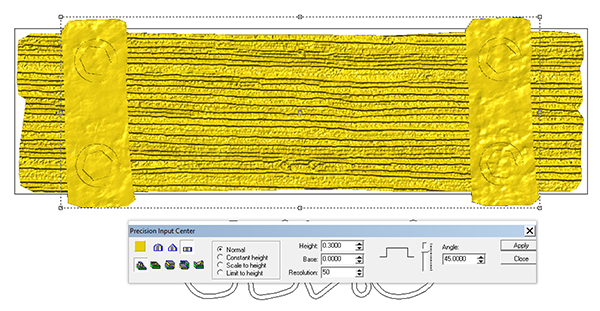

The bolt heads were next and I used a value of 0.3″ tall.

I then selected the metal band reliefs and the board relief and combined them into one relief.

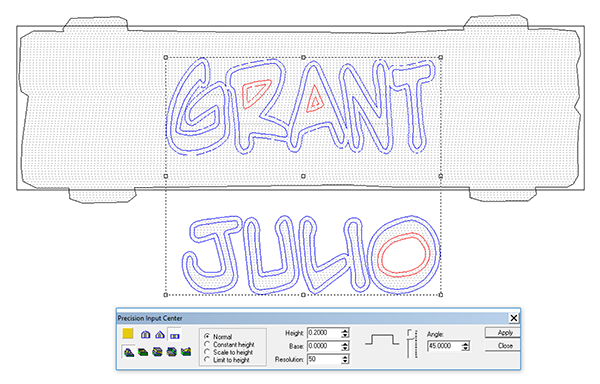

The lettering outlines were next, also created as individual reliefs. Note I did both names at once to save time.

The lettering outline reliefs were then modified by adding the lettering – also a flat relief.

I then duplicated the wood relief and positioned the second name appropriately onto it. The last step was join the letters by merging highest with the wood plaque base relief. Th

e two plaques were done separately.

I could then tool path the two plaques and send them to the router. They were routed from a piece of 1.5″ thick 30 lb Precision Board.
